Slice Square 260
The Slice series features high quality design, functionality, and ease of installation.
This year we’ve updated colour performance, improved IP rating, and equipped with a push lock system for quick installation in the Slice series. Because of the new values, they can be perfectly used in both consumer and professional applications.
npk design, the Netherlands
Specifications
- Materials: Aluminium + Polycarbonate
- Finishes: Black/White/Silver
- LED Power: 24W/18W/10W Switch
- Lumens: 2400lm/1800lm / 1000lm
- Efficacy: 100lm/W
- CCT: 3000K/4000K Switch
- IP Rating: IP54
- CRI: 90
- SDCM: <3
- UGR: <23
- Beam Angles: 120°
- Lifetime: >50,000h L80
- Warranty: 5 Years
Features and Details
- Designed by NPK design Netherlands
- Minimalist design with an uniform light distribution
- Push-locking makes it ease installation
- Can be surface mounted, wall mounted or on track
- Flicker free build-in driver
- Triac Dimming (range 1%-100%)
- DALI2.0 Dimming (DT8)
- Motion detection (Corridoe Function)(Corridor Function integrated with Emergency pack)(Master-Slave Function on/off only)
- Emergency light (90 mins @ 2W)
- Ideal for both residentail and commerical applications
Configure
| SKU | Finish | CCT | Lumen | CRI | Dimming | Function | |
|---|---|---|---|---|---|---|---|

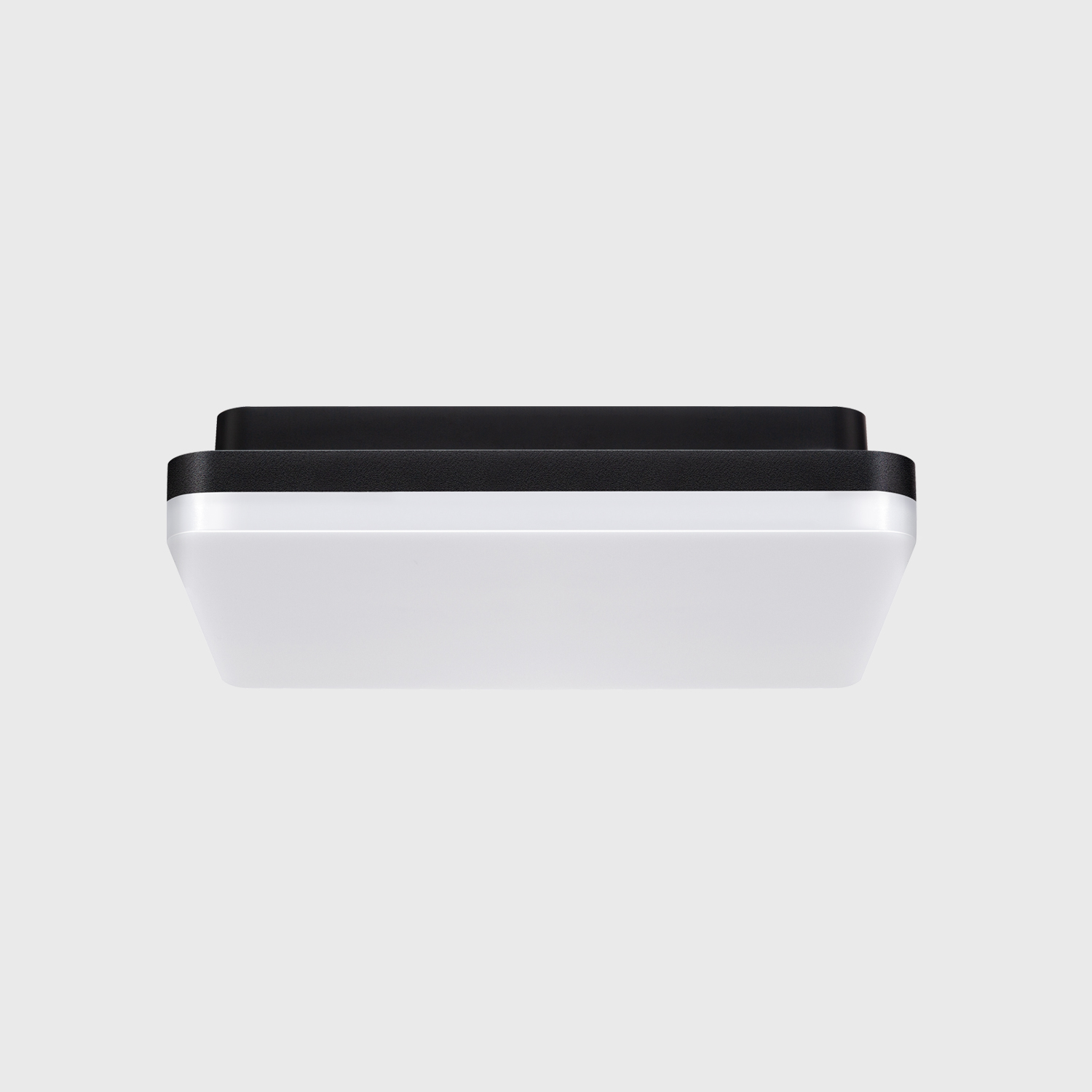

| SS260-B241810D | Black (RAL 9005) | 3000k/4000k | 2400/1800/1000lm | >90 | Phase Cut | ||
| SS260-B241810D-D | Black (RAL 9005) | 3000k/4000k | 2400/1800/1000lm | >90 | DALI | ||
| SS260-B241810D-E | Black (RAL 9005) | 3000k/4000k | 2400/1800/1000lm | >90 | Emergency light | ||
| SS260-B241810D-M | Black (RAL 9005) | 3000k/4000k | 2400/1800/1000lm | >90 | Motion sensor | ||

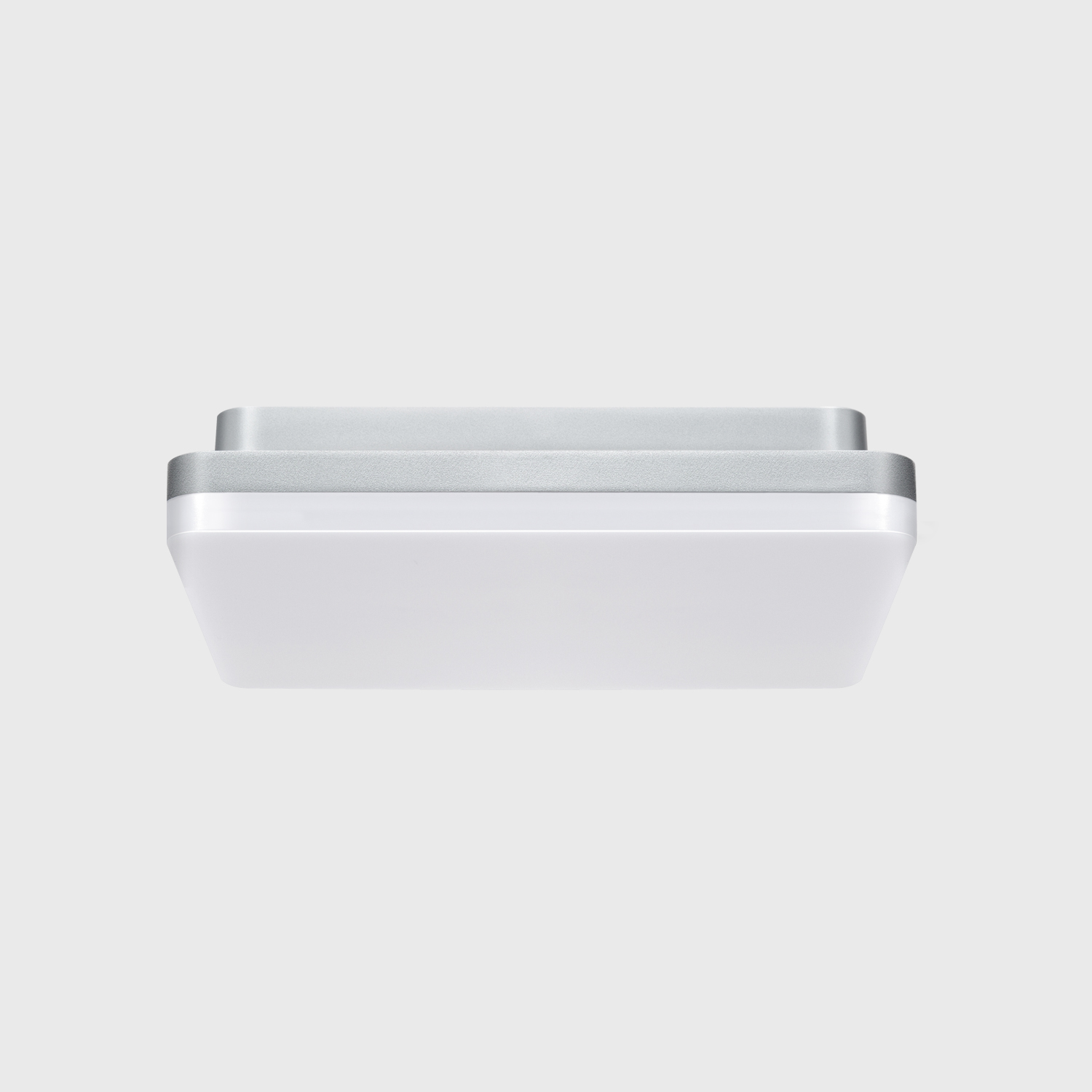

| SS260-S241810D | Silver (RAL 9006) | 3000k/4000k | 2400/1800/1000lm | >90 | Phase Cut | ||
| SS260-S241810D-D | Silver (RAL 9006) | 3000k/4000k | 2400/1800/1000lm | >90 | DALI | ||
| SS260-S241810D-E | Silver (RAL 9006) | 3000k/4000k | 2400/1800/1000lm | >90 | Emergency light | ||
| SS260-S241810D-M | Silver (RAL 9006) | 3000k/4000k | 2400/1800/1000lm | >90 | Motion sensor | ||

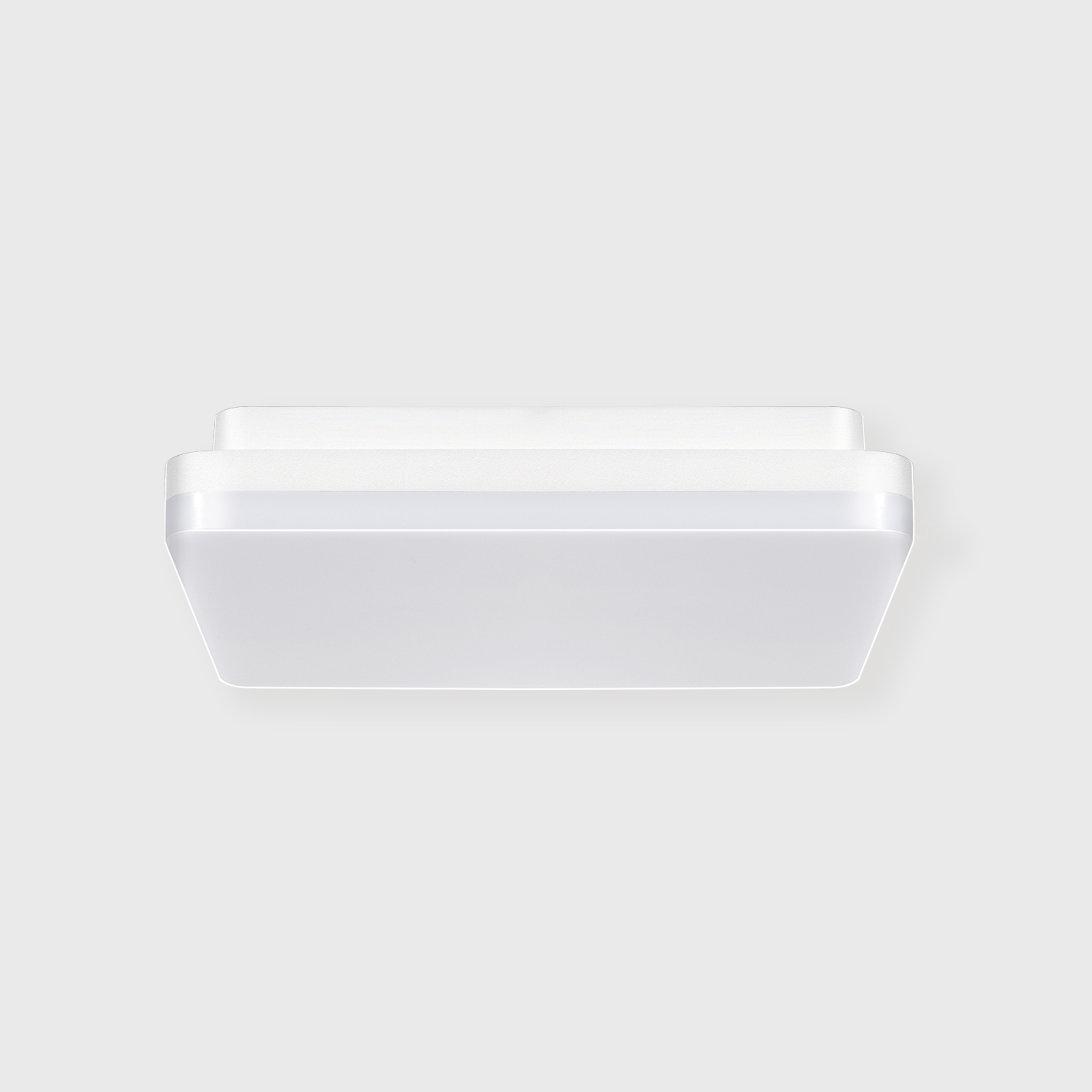

| SS260-W241810D | White (RAL 9016) | 3000k/4000k | 2400/1800/1000lm | >90 | Phase Cut | ||
| SS260-W241810D-D | White (RAL 9016) | 3000k/4000k | 2400/1800/1000lm | >90 | DALI | ||
| SS260-W241810D-E | White (RAL 9016) | 3000k/4000k | 2400/1800/1000lm | >90 | Emergency light | ||
| SS260-W241810D-M | White (RAL 9016) | 3000k/4000k | 2400/1800/1000lm | >90 | Motion sensor |
