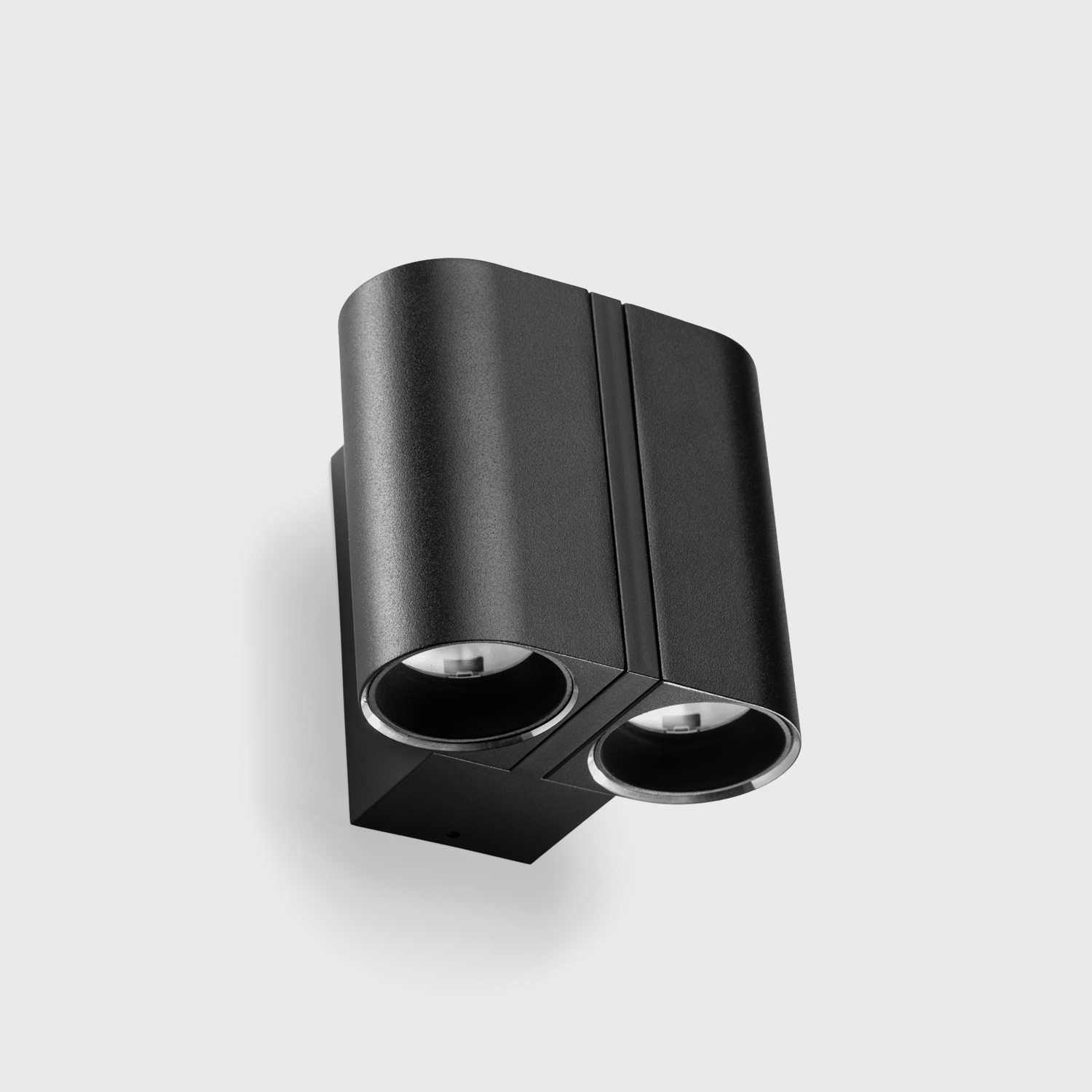

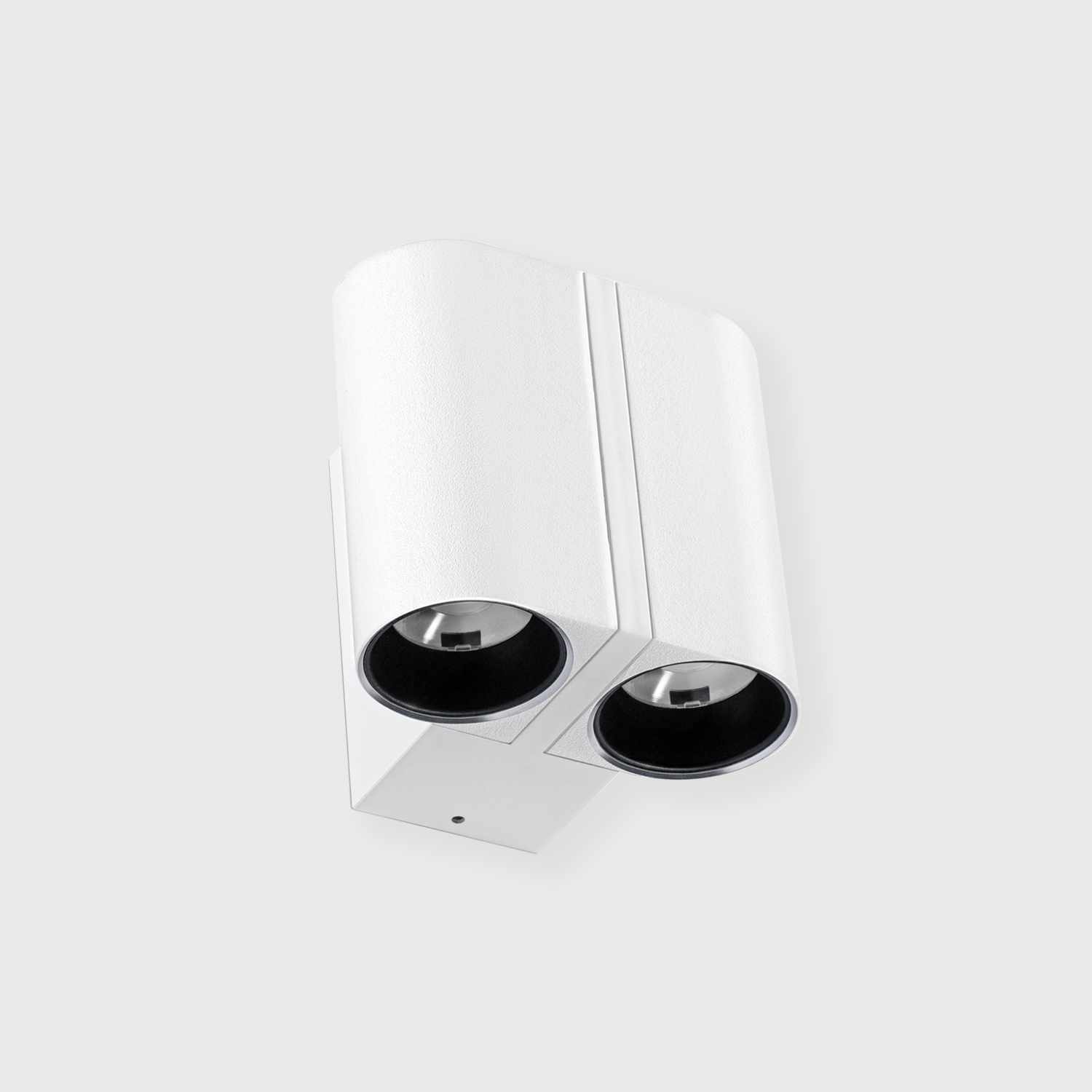

Fusi 46 Wall
The wall-mounted luminaires offer a discreet and functional solution to general or accent architectural lighting. The luminaires provide a high level of visual comfort. A special lens diffuses light and directs it on the wall upwards and downwards with different beam angles. The lens covers the source of light and provides homogeneous and ambient lighting. Our wall lights provide seamless integration with their surroundings, with subtle light in the required space.
They bring basic brightness to the room or accentuate the wall with visible light shapes. Any glare can be reduced by applying optical accessories such as the Honeycomb Louver.
Specifications
- Materials: Powder Coated Aluminium
- Finishes: Black/White
- LED Power: 12W
- Lumens: 960lm
- Efficacy: 80lm/W
- CCT: 3000K/4000K 2700K on request
- IP Rating: IP20
- CRI: 95
- SDCM: <3
- UGR: <13
- Beam Angles: 15°/24°/36°/50°
- Lifetime: >50,000h L80
- Warranty: 5 Years
Features and Details
- Single beam and double beam version
- Upwards or Downwards light distribution
- Switch, DALI dimming (Fliker Free Driver)
- For visual confort and reduced glare
- High-quality Lens
- Ideal for both consumer and professional applications
Accessories
- Honeycomb Louver
- Cross Louver
Configure
| SKU | Finish | Luminous Flux | CCT | CRI | SDCM | UGR | Beam angle | Dimming | |
|---|---|---|---|---|---|---|---|---|---|
| F46-WB31512ND | Black (RAL 9005) | 900lm | 3000K | >95 | <3 | <13 | 15° | Phase cut | |
| F46-WB31512ND-D | Black (RAL 9005) | 900lm | 3000K | >95 | <3 | <13 | 15° | DALI | |
| F46-WB41512ND | Black (RAL 9005) | 900lm | 4000K | >95 | <3 | <13 | 15° | Phase cut | |
| F46-WB41512ND-D | Black (RAL 9005) | 900lm | 4000K | >95 | <3 | <13 | 15° | DALI | |
| F46-WB32412ND | Black (RAL 9005) | 960lm | 3000K | >95 | <3 | <13 | 24° | Phase cut | |
| F46-WB32412ND-D | Black (RAL 9005) | 960lm | 3000K | >95 | <3 | <13 | 24° | DALI | |
| F46-WB42412ND | Black (RAL 9005) | 960lm | 4000K | >95 | <3 | <13 | 24° | Phase cut | |
| F46-WB42412ND-D | Black (RAL 9005) | 960lm | 4000K | >95 | <3 | <13 | 24° | DALI | |
| F46-WB33612ND | Black (RAL 9005) | 960lm | 3000K | >95 | <3 | <13 | 36° | Phase cut | |
| F46-WB33612ND-D | Black (RAL 9005) | 960lm | 3000K | >95 | <3 | <13 | 36° | DALI | |
| F46-WB43612ND | Black (RAL 9005) | 960lm | 4000K | >95 | <3 | <13 | 36° | Phase cut | |
| F46-WB43612ND-D | Black (RAL 9005) | 960lm | 4000K | >95 | <3 | <13 | 36° | DALI | |
| F46-WB35012ND | Black (RAL 9005) | 920lm | 3000K | >95 | <3 | <13 | 50° | Phase cut | |
| F46-WB35012ND-D | Black (RAL 9005) | 920lm | 3000K | >95 | <3 | <13 | 50° | DALI | |
| F46-WB45012ND | Black (RAL 9005) | 920lm | 4000K | >95 | <3 | <13 | 50° | Phase cut | |
| F46-WB45012ND-D | Black (RAL 9005) | 920lm | 4000K | >95 | <3 | <13 | 50° | DALI | |
| F46-WW31512ND | White (RAL 9016) | 900lm | 3000K | >95 | <3 | <13 | 15° | Phase cut | |
| F46-WW31512ND-D | White (RAL 9016) | 900lm | 3000K | >95 | <3 | <13 | 15° | DALI | |
| F46-WW41512ND | White (RAL 9016) | 900lm | 4000K | >95 | <3 | <13 | 15° | Phase cut | |
| F46-WW41512ND-D | White (RAL 9016) | 900lm | 4000K | >95 | <3 | <13 | 15° | DALI | |
| F46-WW32412ND | White (RAL 9016) | 960lm | 3000K | >95 | <3 | <13 | 24° | Phase cut | |
| F46-WW32412ND-D | White (RAL 9016) | 960lm | 3000K | >95 | <3 | <13 | 24° | DALI | |
| F46-WW42412ND | White (RAL 9016) | 960lm | 4000K | >95 | <3 | <13 | 24° | Phase cut | |
| F46-WW42412ND-D | White (RAL 9016) | 960lm | 4000K | >95 | <3 | <13 | 24° | DALI | |
| F46-WW33612ND | White (RAL 9016) | 960lm | 3000K | >95 | <3 | <13 | 36° | Phase cut | |
| F46-WW33612ND-D | White (RAL 9016) | 960lm | 3000K | >95 | <3 | <13 | 36° | DALI | |
| F46-WW43612ND | White (RAL 9016) | 960lm | 4000K | >95 | <3 | <13 | 36° | Phase cut | |
| F46-WW43612ND-D | White (RAL 9016) | 960lm | 4000K | >95 | <3 | <13 | 36° | DALI | |
| F46-WW35012ND | White (RAL 9016) | 920lm | 3000K | >95 | <3 | <13 | 50° | Phase cut | |
| F46-WW35012ND-D | White (RAL 9016) | 920lm | 3000K | >95 | <3 | <13 | 50° | DALI | |
| F46-WW45012ND | White (RAL 9016) | 920lm | 4000K | >95 | <3 | <13 | 50° | Phase cut | |
| F46-WW45012ND-D | White (RAL 9016) | 920lm | 4000K | >95 | <3 | <13 | 50° | DALI |
